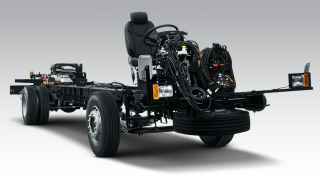

Mercedes-Benz Bus Chassis: OF 917
Download Product Brochure.
Technical Data at a glance.
| Roda & ban / Wheel & tyre | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Konfigurasi roda penggerak / Drive configuration | 4X2 | 4X2 |
| Ukuran roda / Wheel size | 6,75 x 17,5 | 6,75 x 17,5 |
| Ukuran & tipe ban depan / Front tyre size & type | 235 / 75 R 17.5, radial tubeless | 235 / 75 R 17.5, radial tubeless |
| Ukuran & tipe ban belakang / Rear tyre size & type | 235 / 75 R 17.5, radial tubeless | 235 / 75 R 17.5, radial tubeless |
| Mesin / Engine | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Tipe / Type | 4D34i, 4 cylinder | 4D34i, 4 cylinder |
| Emisi / Emission | Euro 4 | Euro 4 |
| Isi silinder / Cylinder volume [cc] | 3907 | 3907 |
| Tenaga maksimum / Max. powe [HP/rpm] | 170 / 2500 | 170 / 2500 |
| Torsi maksimum / Max. torque [Nm/rpm] | 520 / 1500 | 520 / 1500 |
| Transmisi / Transmisison | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Tipe / Type | MO36S6, Manual (M/T) | MO36S6, Manual (M/T) |
| Jumlah gigi / Total gears | 6 Speed Forward + 1 Speed Reverse | 6 Speed Forward + 1 Speed Reverse |
| Gear ratio/ Perbandingan gigi | 5,40-0,71 | 5,40-0,71 |
| Performa / Performance | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Kecepatan maksimum / Max. speed [km/h] | 110 | 110 |
| Kemampuan menanjak / Gradeability [%] | 31 @ 10,4 T GVW | 31 @ 10,4 T GVW |
| Aki / Battery | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Tipe / Type | 2 X 12V, 120 Ah | 2 X 12V, 120 Ah |
| Alternator | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Tipe / Type | 2 X 80 A | 2 X 80 A |
| Kopling / Clutch | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Tipe / Type | Dry, Single Plate, Hydraulic Actuated Control with Servo Assistance | Dry, Single Plate, Hydraulic Actuated Control with Servo Assistance |
| Diameter [mm] | 325 | 325 |
| Kapasitas tangki BBM / Fuel tank capacity | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Tangki BBM utama / Main fuel tank [L] | 200 | 200 |
| Kapasitas tangki AdBlue / AdBlue tank capacity | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Kapasitas tangki / tank capacity [L] | 30 | 30 |
| Sumbu depan / Front axle | OF 917 /4250 M/T | OF 917 /5300 M/T |
| Kapasitas beban maksimum / Max. capacity [kg] | 4000 | 4000 |
| Sumbu belakang / Rear axle | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Kapasitas beban maksimum / Max. capacity [kg] | 6400 | 6400 |
| Perbandingan gigi terakhir/ Final gear ratio | 5,13 | 5,13 |
| Suspensi / Suspension | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Depan / Front | Parabolic, with Shock Absorber & Stabilizer | Parabolic, with Shock Absorber & Stabilizer |
| Belakang / Rear | Parabolic, with Shock Absorber & Stabilizer | Parabolic, with Shock Absorber & Stabilizer |
| Rem / Brake | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Rem utama / Main brake | Drum, Full Air, Dual Circuit, S-Cam, Auto Slack Adjuster, ABS | Drum, Full Air, Dual Circuit, S-Cam, Auto Slack Adjuster, ABS |
| Rem tambahan / Additional brake | Exhaust Brake | Exhaust Brake |
| Kemudi / Steering | Power Steering | Power Steering |
| Dimensi / Dimension | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Julur depan / Front overhang (FOH) [mm] | 1340 | 1310 |
| Jarak sumbu roda / Wheelbase (WB) [mm] | 4250 | 5300 |
| Julur belakang / Rear overhang (ROH) [mm] | 1940 | 1996 |
| Panjang total / Total length (TL) [mm] | 7530 | 8606 |
| Lebar total / Total width (TW) [mm] | 2199 | 2199 |
| Tinggi total / Total height (TH) [mm] | 2233 | 2166 |
| Jarak terendah ke tanah / Ground clearance (GC) [mm] | 218 | 218 |
| Radius putar / Turning circle radius [mm] | 7602 | 9375 |
| Berat chasis / Chassis weight | OF 917 / 4250 M/T | OF 917 / 5300 M/T |
| Berat kosong / Kerb weight [kg] | 3047 | 3163 |
| JBB / GVW [kg] | 10400 | 10400 |
