Our Models
OF 1623 L

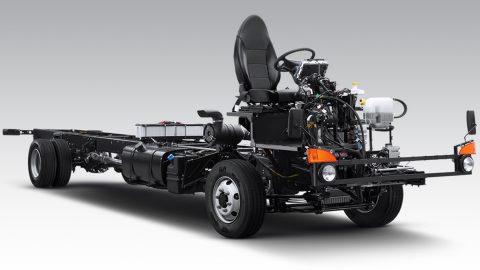

Mercedes-Benz Bus Chassis: OF 1623 L.
Download Product Brochure.
Technical Data at a glance.
| Roda & ban / Wheel & tyre | OF 1623 L M/T |
| Konfigurasi roda penggerak / Drive configuration | 4X2 |
| Ukuran roda / Wheel size | 8,25 x 22,5 |
| Ukuran & tipe ban depan / Front tyre size & type | 11.00 R 22.5, radial tubeless |
| Ukuran & tipe ban belakang / Rear tyre size & type | 11.00 R 22.5, radial tubeless |
| Mesin / Engine | OF 1623 L M/T |
| Tipe / Type | OM906LA, 6 cylinder |
| Emisi / Emission | Euro 4 |
| Isi silinder / Cylinder volume [cc] | 6373 |
| Tenaga maksimum / Max. power [HP/rpm] | 238 / 2200 |
| Torsi maksimum / Max. torque [Nm/rpm] | 850 / 1200-1600 |
| Transmisi / Transmisison | OF 1623 L M/T |
| Tipe / Type | G 85, Manual (M/T) |
| Jumlah gigi / Total gears | 6 Speed Forward + 1 Speed Reverse |
| Gear ratio/ Perbandingan gigi | 6,70-0,73 |
| Performa / Performance | OF 1623 L M/T |
| Kecepatan maksimum / Max. speed [km/h] | 110 |
| Kemampuan menanjak / Gradeability [%] | 20 @ 16 T GVW |
| Aki / Battery | OF 1623 L M/T |
| Tipe / Type | 2 X 12V, 200 Ah |
| Alternator | OF 1623 L M/T |
| Tipe / Type | 1 X 100 A |
| Kopling / Clutch | OF 1623 L M/T |
| Tipe / Type | Dry, Single Plate, Hydraulic Actuated Control with Servo Assistance |
| Diameter [mm] | 395 |
| Kapasitas tangki BBM / Fuel tank capacity | OF 1623 L M/T |
| Tangki BBM utama / Main fuel tank [L] | 380 |
| Kapasitas tangki AdBlue / AdBlue tank capacity | OF 1623 L M/T |
| Kapasitas tangki / Tank capacity [L] | 60 |
| Sumbu depan / Front axle | OF 1623 L M/T |
| Kapasitas beban maksimum / Max. capacity [kg] | 6000 |
| Sumbu belakang / Rear axle | OF 1623 L M/T |
| Kapasitas beban maksimum / Max. capacity [kg] | 10000 |
| Perbandingan gigi terakhir/ Final gear ratio | 5,22 |
| Suspensi / Suspension | OF 1623 L M/T |
| Depan / Front | Air Suspension (2 Bellows), with Shock Absorber & Stabilizer |
| Belakang / Rear | Air Suspension (4 Bellows), with Shock Absorber & Stabilizer |
| Rem / Brake | OF 1623 L M/T |
| Rem utama / Main brake | Drum, Full Air, Dual Circuit, S-Cam, ABS |
| Rem tambahan / Additional brake | Engine Brake & Exhaust Brake |
| Kemudi / Steering | Power Steering |
| Dimensi / Dimension | OF 1623 L M/T |
| Julur depan / Front overhang (FOH) [mm] | 2305 |
| Jarak sumbu roda / Wheelbase (WB) [mm] | 5950 |
| Julur belakang / Rear overhang (ROH) [mm] | 3510 |
| Panjang total / Total length (TL) [mm] | 11765 |
| Lebar total / Total width (TW) [mm] | 2500 |
| Tinggi total / Total height (TH) [mm] | 1960 |
| Jarak terendah ke tanah / Ground clearance (GC) [mm] | 240 |
| Radius putar / Turning circle radius [mm] | 9800 |
| Berat chasis / Chassis weight | OF 1623 L M/T |
| Berat kosong / Kerb weight [kg] | 5220 |
| JBB / GVW [kg] | 16000 |
