[1] Cooling agent R-134a and fluorinated greenhouse gas are used and present in the air conditioning system and refrigerator. Indicators with detailed information on the cooling agent type are located on the corresponding devices. One should also take into account the information given in the manual on your bus. More detailed information can be found in the corresponding technical brochures.
[2] Allowed height deviation +/- 20 mm
[3] Empty weight (DIN 70020)
[4] in Germany

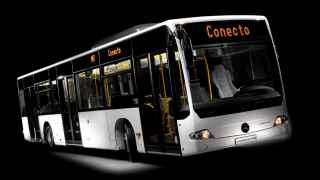

Conecto Euro V
Technical Data
Technical data at a glance.
|
|
|
|
|---|---|---|
| Seating capacity | ||
| Places for seating passengers (series) | 26 | 41 |
| Places for standing passengers (series) | 68 | 107 |
| Total places (series) | 1/94 | 1/148 |
| Places for seating passengers (custom version) | max. 35 | max. 51 |
| Places for standing passengers (custom version) | 59 | max. 97 |
| Total places (custom version) | 1/94 | 1/148 |
| Dimensions | ||
| Length (mm) | 11.950 | 17.940 |
| Width (mm) | 2.550 | 2.550 |
| Height incl. conditioner (mm) [1] | 3.076 | 3.076 |
| Height including roof structures (mm) [2] | 3.056 | 3.056 |
| Distance between front-leading axles (mm) | 5.845 | 5.845 |
| Distance between mid-leading axles (mm) | - | 5.990 |
| Tyre size | 275/70 R 22.5 | 275/70 R 22.5 |
| Front overhang (mm) | 2.705 | 2.705 |
| Rear overhang (mm) | 3.400 | 3.400 |
| Front overhang angle (°) | 7 | 7 |
| Rear overhang angle (°) | 7 | 7 |
| Outer turning diameter (mm) | 21.542 | 22.822 |
| Engine & power | ||
| Engine (on series basis) | Mercedes-Benz OM 926 LA | Mercedes-Benz OM 457 LA |
| Exhaust emission standards | Euro V / EEV | Euro V / EEV |
| System | SCR-diesel technology, BlueTec® | SCR-diesel technology, BlueTec® |
| Maximum power (kW [hp] at rev./min.) | 210 | 260 (354) |
| Total volume (cm³) | 7.200 | 11.967 |
| Number and arrangement of cylinders | 6 / row with vertical arrangement | 6 / vertical arrangement |
| Rated-load torque (Nm at rev./min.) | 1,120 at 1,100 per min. | 1,600 Nm at 1,100 rev./min. |
| Transmission (on series basis), type | - | Automatic transmission ZF Ecomat, 6-speed, HP 602 |
| Engine & power (Options) | ||
| Engine 2 (custom version) | Mercedes-Benz OM 906 (h)LA | - |
| Exhaust emission standards [Engine 2] | Euro V / EEV | - |
| Maximum power (kW [hp] at rev./min.) [Engine 2] | 205 (279) / 210 (286) | - |
| Rated-load torque (Nm at rev./min.) [Engine 2] | 1,120 Nm at 1,300 rev./min. | - |
| Transmission (custom version) [Engine 2] | Automatic transmission ZF Ecomat, 6-speed, HP 602 | - |
| Engine 3 (custom version) | Mercedes-Benz OM 906 LA | - |
| Exhaust emission standards [Engine 3] | Euro V / EEV | - |
| Maximum power (kW [hp] at rev./min.) [Engine 3] | 210 (286) | - |
| Rated-load torque (Nm at rev./min.) [Engine 3] | - | - |
| Transmission (custom version) [Engine 3] | 4-speed automatic transmission Voith 854.3 | - |
| Engine 4 (custom version) | - | - |
| Exhaust emission standards [Engine 4] | - | - |
| Maximum power (kW [hp] at rev./min.) [Engine 4] | - | - |
| Rated-load torque (Nm at rev./min.) [Engine 4] | - | - |
| Transmission (custom version) [Engine 4] | - | - |
| Engine 5 (custom version) | - | - |
| Exhaust emission standards [Engine 5] | - | - |
| Maximum power (kW [hp] at rev./min.) [Engine 5] | - | - |
| Rated-load torque (Nm at rev./min.) [Engine 5] | - | - |
| Transmission (custom version) [Engine 5] | - | - |
| Driving gear | ||
| Steering control | - | - |
| Front axle, type | Mercedes-Benz axle suspension, manufactured by MB, VO 4/39 CL-7.5 type | Mercedes-Benz axle suspension, manufactured by MB, VO 4/39 CL-7.5 type |
| Medium axle, type | - | Portal axle for low-floor bus manufactured by ZF, AV 132/87 model |
| Leading axle, type | Inverted U-shaped portal axle for low-floor manufactured by ZF | Inverted U-shaped portal axle for low-floor manufactured by ZF |
| Brakes | ||
| Primary braking system | - | - |
| Auxiliary braking system | Retarder-brake | - |
| Auxiliary systems | ||
| Anti-lock braking system (ABS) | ABS | ABS |
| Traction control system (ASR) | - | Custom version |
| Reversing assistance | - | - |
| Weight | ||
| Fuel tank capacity for diesel engine (l) | 280 | 300 |
| Fuel tank for AdBlue (l) | 38 | 46 |
| Empty mass (kg) [3] | 11.210 | 16.568 |
| Vehicle rated mass (kg) [4] | 19.000 | 29.000 |
| Front axle (kg) | 3.347 | 4.464 |
| Medium axle (kg) | - | 3.163 |
| Leading axle (kg) | 7.863 | 8.941 |
| Doors | ||
| The driver's seat floor height compared to the road (mm) | 370 | 370 |
| The central passage floor height compared to the road (mm) | 370 | 370 |
| Space for standing passengers at the front/rear (mm) | 2.313 | 2.313 |
| Door width, front (mm) | 1.250 | 1.250 |
| Door width, middle (mm) | 1.250 | 1.250 |
| Door width, rear (mm) | 1.250 | 1.250 |
| Air conditioning system | ||
| Power rating of cooling in passenger compartment (kW) | 32 | 36 |
| Passenger compartment heat output (kW) | 38 | 76 |
| Driver's space cooling (kW) | 8 | 8 |
| Driver's space heat output (kW) | 22 | 22 |
