The eCitaro

Technical data and equipment at a glance.

The eCitaro at a glance.

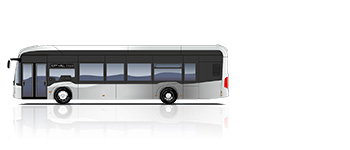

eCitaro 1 door

Length [mm]:
12,135
Turning circle [mm]:
21,214
Height [mm]:
3,400
Width [mm]:
2,550

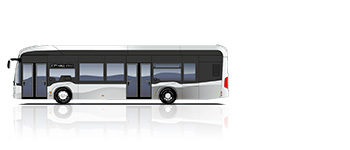

eCitaro 2 doors

Length [mm]:
12,135
Turning circle [mm]:
21,214
Height [mm]:
3,400
Width [mm]:
2,550

Technical data and equipment at a glance.

eCitaro 1 door eCitaro 2 doors
Dimensions
Length [mm] 12,135 12,135
Width [mm] 2,550 2,550
Width incl. mirrors [mm] 2,950 2,950
Height [mm] 3,400 3,400
Interior standing height in low-floor area [mm] 2,313 2,313
Parapet height (above ground) [mm] 952 952
Wheelbase front axle-drive axle [mm] 5,900 5,900
Tyre size 275/70 R 22,5 275/70 R 22,5
Tyre size as per selection* 315/60 R 22,5 315/60 R 22,5
Overhang at front [mm] 2,805 2,805
Overhang at rear [mm] 3,430 3,430
Turning circle [mm] 21,214 21,214
Turning circle min. [mm] 21214 21,214
Ring width turning circles min. [mm] 6,803 6,803
Track circle minimal [mm] 17,058 17,058
Wheel impact front axle max. [°] 53 53
Swing-out dimension [mm] 779 779
Cockpit height [mm] 310 310
Floor height over roadway [mm] 370 370
Pedestal height [mm] 280 280
Entry height door 1 [mm] 320 320
Entry height door 2 [mm] - 320
Door opening width 1 [mm] 1,250 1,250
Door opening width 2 [mm] - 1,250
Slope angle in front [°] 7 7
Slope angle rear [°] 7 7
eCitaro 1 door eCitaro 2 doors
Transmission
Electric drive ZF AxTrax AVE ZF AxTrax AVE
Power (peak/ duration) [kW] 250 / 125 250 / 125
Max. Torque [Nm] 2x 485 2x 485
Transmission ratio 1:23 1:23
After final ratio 2x 11.000 2x 11.000
Nominal voltage [V] 400 400
eCitaro 1 door eCitaro 2 doors
Chassis
Steering Intelligent eco steering (electrohydraulic steering) intelligent eco steering (electrohydraulic steering)
Front axle, type ZF 82 RL EC ZF 82 RL EC
Front axle: independent suspension, anti-roll bar ● ●
Driven axle, type ZF AxTrax AVE ZF AxTrax AVE
Drive axle: with anti-roll bar ● ●
Kneeling ○ ○
Air suspension via electronic level control system (ENR) ● ●
eCitaro 1 door eCitaro 2 doors
Brakes
Pneumatic disc brakes on all axles ● ●
Electronic Stability Programme (ESP®) ● ●
Electronically controlled braking system (EBS) ● ●
Anti-locking system (ABS) ● ●
Brake Assist (BAS) ● ●
Acceleration Slip Regulation (ASR) ● ●
Automatic bus stop brake with pull-away lock ● ●
Parking brake ● ●
eCitaro 1 door eCitaro 2 doors
Safety and driver assistance systems
Rollover strength compliant with ​in ECE R29 ● ●
Tyre Pressure Monitoring (TPM) ● ●
Preventive Brake Assist 2 ○ ○
Sideguard Assist 2 ● ●
Electronic Stability Program (ESP®) ● ●
Reversing camera ● ●
Reversing buzzer ○ ○
Extinguishing system ○ ○
Rain-light sensor ○ ○
Flat wiper blades with water fed through wiper blade ● ●
Rollover strength compliant with ECE-R 66.02 ● ●
360° Camera ○ ○
270° Camera - -
Traffic Sign Assist ● ●
Frontguard Assist ● ●
Attention Assist (AtAs) ● ●
MirrorCam ○ ○
eCitaro 1 door eCitaro 2 doors
Profitability
Tyre Pressure Monitoring (TPM) ● ●
Glide (coasting) ● ●
Ranges Up to 400 km** Up to 400 km**
eCitaro 1 door eCitaro 2 doors
Transport capacity
Number of seats – standard seating 1/36 1/29
Passenger capacity max. 88 88
Driver’s seat GRAMMER Linea MSG 90.6 P, air-sprung ● ●
Driver’s seat ISRI 6860, integrated pneumatic system, 3-point seat belt ○ ○
Wheelchair space ○ ○
Seating type Inter Star Eco (ISE) ○ ○
Seating type City Star Function (CSF) ○ ○
Seating type City Star Eco (CSE) ● ●
eCitaro 1 door eCitaro 2 doors
Weight and fuel tanks
Gross vehicle weight [kg] 20,000 20,000
Axle loads, max. permissible front axle [kg] 7,500 7,500
Axle loads, max. permissible central axle [kg] - -
Axle loads, max. permissible drive axle [kg] 13,000 13,000
eCitaro 1 door eCitaro 2 doors
Heating, air conditioning and ventilation
Driver’s area air conditioning ● ●
EvoThermatik Basic ● ●
EvoThermatik high comfort ○ ○
Turbo roof ventilator ● ●
Intelligent thermal management ● ●
eCitaro 1 door eCitaro 2 doors
Doors and glazing
Number of doors 1 2
Interior swivel door ● ●
Sliding swivel door ○ ○
Ramp manual ○ ○
Ramp electric ○ ○
Single glazed ● ●
Double glazed ○ ○
Windscreen heatable ○ ○
eCitaro 1 door eCitaro 2 doors
Lighting
Low beam ● ●
High beam ● ●
Daytime driving lights with LED technology ● ●
Headlamps with LED technology ● ●
Front fog lamp ○ ○
Cornering light ○ ○
eCitaro 1 door eCitaro 2 doors
Battery technology
Battery arrangement NMC battery (Rear/Roof) 2/up to 4 2/up to 4
Number of high-voltage NMC battery modules 4-6 4-6
NMC 3 ● ●
Capacity per NMC battery modules [kWh] 98 98
Capacity equipment variant NMC battery [6/8/10/12/] 294/392/490/588 294/392/490/588
Charging technology Combo2 charging plug Combo2 charging plug
Charging technology 2* Pantograph power consumer Pantograph power consumer**
Charging technology 3* Charging rail Charging rail

● Standard equipment ○ Optional equipment
* Optional equipment

** The range was determined internally under specific conditions, including equipment with maximum battery capacity, battery in delivery condition, in typical city bus operation and moderate weather scenario, and may deviate from the values determined in accordance with Regulation (EU) 2017/2400, for example. The actual range depends on the individual use of the vehicle, the vehicle configuration and other external factors. Therefore, the actual range may be below or above the specified value.

Safety.

Sideguard Assist 2

Sideguard Assist 2 is a safety assistance system that supports the driver in critical situations when turning right or turning left when visibility is possibly restricted. The system is designed to help detect moving obstacles within the system limits, and warns the driver so as to avoid critical situations or reduce the consequences of accidents when turning off or changing lanes.

Electronic Stability Program (ESP®)

The Electronic Stability Program significantly reduces the risk of skidding by selectively braking individual wheels, thus preventing loss of control of the vehicle in curves and emergency steering manoeuvres.

LED headlights for low beam and high beam

The vehicle is optionally equipped with long-life LED headlights. The light beam can be defined very accurately. The colour of the light is approximately the same as daylight, therefore the driver's eyes tire less quickly. More brightness and longer range provide additional safety.

Rain-light sensor

The rain sensor and automatic driving light are assist systems that activate automated functions by means of a sensor system and relieve the driver of routine tasks.

Electronic Braking Assist (BAS)

By constantly comparing the data, the electronic braking assist system immediately detects if the speed at which the brake pedal is pressed suddenly exceeds the usual level, and in such situations automatically boosts the maximum braking power to within fractions of a second. This significantly shortens the stopping distance of the vehicle.

AquaBlade® windscreen wipers

The AquaBlade® windscreen wipers ensure optimum visibility at all times and, thanks to an ergonomic design, minimise both driving noise and fuel consumption.

Acceleration Skid Control (ASR)

ASR prevents the drive wheels from spinning in two ways. On the one hand, ASR minimises wheel spinning through a measured braking intervention. On the other hand, the torque of the engine is regulated via the "electronic accelerator pedal".

Anti-lock Braking System (ABS)

The Anti-lock Braking System (ABS) supports driving stability during critical braking operations and ensures that the vehicle remains steerable. The braking forces acting on the individual wheels are distributed by the ABS so that even in an emergency braking situation no wheel is blocked for any length of time, and the steerability of the bus is largely maintained.

Acoustic Vehicle Alerting System

The Acoustic Vehicle Alerting System (AVAS) is a sound generator that generates a noise similar to that of a combustion engine in a speed range of up to 18.6 mph when driving forwards and up to 3.7 mph when reversing. A pleasant sound alerts those in the vicinity of the fully electric bus.

Preventive Brake Assist 2

With Preventive Brake Assist 2, Daimler Buses offers the second generation of Active Brake Assist. The system warns of collisions with moving pedestrians and cyclists as well as stationary and moving objects. In the event of a serious risk of collision, the driver is alerted by a visual and acoustic warning and partial braking is initiated automatically.

Articulation Turntable Controller (ATC)

Both agile and robust. The Articulation Turntable Controller (ATC) developed by Mercedes-Benz is a sophisticated anti-jackknife system for articulated buses. This swivel joint and its control system form one of the core components of the vehicle.

MirrorCam

The modern MirrorCam system provides a clear and full view of the road traffic. Equipped with high-resolution cameras, the driving safety is improved and the risk of accidents is minimised. The extended field of vision enables the driver to see pedestrians, cyclists and other road users in the surrounding area. This eliminates the blind spot when turning right.

Traffic Sign Assist (TSA)

The innovative Traffic Sign Assist offers maximum safety and comfort on the road. Thanks to GPS and camera support, the vehicle speed is constantly compared with the current traffic regulations.

Frontguard Assist

Frontguard Assist is an advanced system that was specially developed to warn drivers of pedestrians located immediately in front of the vehicle and also to warn them of an impending accident. Whether you are pulling away or driving slowly (up to 9.3 mph), the intelligent assistance system can detect potential collisions with unprotected road users.

Attention Assist (AtAs)

Attention Assist (AtAs) is a safety assistance system that can help prevent microsleep. It thus contributes to improved driving safety, especially on long journeys and when driving at night. The system warns the driver visually and acoustically when it detects typical signs of overtiredness or inattention and prompts him/her to take a break. The warning is independent of the electronic logging device (ELD).
